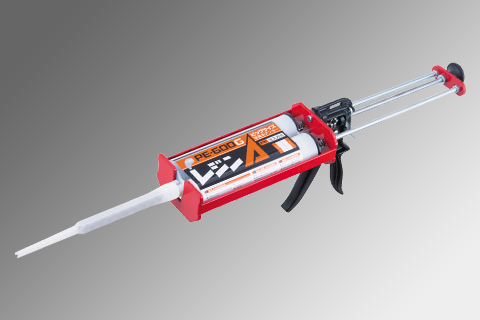

Resin-A PE-600G (Cartridge type)

Resin anchor (Injection System)

  • ■Can be used for various bolts, sizes and shapes of different shape reinforced steels.
  • ■Excellent in chemical resistance, and can be used for installation in water.
  • ■Demonstrates stable fixing strength because primary material and hardening agent are constantly mixed by mixing nozzle.
  • ■Adopts high performance epoxy resin with no resin contraction. Also less odor and toxicity.

PE-400N series

Resin-A PE-600G (Cartridge type)

unika news PDF (2.01MB)

Uses

Concrete•Rock bed

Installation method

  1. Drill vertically to target surface with the determined preparation diameter and preparation hole depth.
  2. Use a dust collector or blower to thoroughly remove chips in the hole.
  3. Remove chips adhered in the hole using a brush, and use a dust collector or blower to clean in the hole again.
  4. Insert the nozzle down to the hole bottom and fill resin.
  5. Insert the bolt down to the hole bottom while slowly turning it by hand.
  6. Do not move the anchor bolt within the determined hardening time after embedding.

■Uses

Foundation work for iron frame, Passage construction work, Tunnel construction work, Installation for vibrating machines.

■Structural Drawing

Structural Drawing

■Installation specifications

 Nominal
diameter(mm)		 M8 M10 M12 M16 M20 M22 M24
 Preparation
hole
diameter(mm)		 10.0 12.0 14.0 18.0 24.0 25.0 28.0
 Embedment
depth(mm)		 80 90 110 130 170 190 210
 Required
resin
amount(ml)		 4 6 9 15 42 43 66
 Recommended
tightening
torque(Nm)		 10 20 40 80 120 140 160
 Number of pieces
installed(Pcs.)		 137 91 61 36 13 12 8

*Number of pieces installed is for reference number of pieces at a loss rate of 20%.

■Shape of bolt used

Shape of bolt used

Cannot be used for a round bar. Use bolts which have irregularity on a surface such as a continuous thread bolt and different shape bar steel.

■Guideline for hardening time

Temperature(℃) 5 15 25 35 40
Use time(minutes) 100 60 40 25 20
Hardening time(minutes) 2400 1440 660 540 480

(Do not move the anchor reinforcement within the hardening time.)

Precautions on use

  • Avoid direct sunlight and store in a well-ventilated place where the temperature does not rise so high.
    (Never raise the temperature above 40℃. Always keep the temperature in the range of 5 to 25℃.)
  • Do not bring close to fire or high temperature objects.
  • Cartridge can be stored until the expiration date for use under standard storage conditions.
  • Wear protective equipment (such as protective glasses and mask) when using.
  • When resin adheres to skin, irritation may occur in rare cases. Take action such as immediately wiping and rinsing with a hot soapy solution.
    In addition, if resin gets into eyes, immediately rinse with a large amount of water and seek medical attention.

Precautions on installation

  • Make sure to provide the drilling diameter and drilling depth as described in the specifications.
  • Make sure to use both a metallic brush and blower to sufficiently clean inside the hole.
  • Make sure to mount the mixing nozzle with it just before use.
  • Make sure to discard first approximately 20~30cc at a time of first use and nozzle replacement. (Mixing improperly may result in reduction in strength.)
  • This cannot be used for a steel bar with no irregularity such as a round bar.
  • Refer to the scale on the cartridge label for discharge resin amount.
  • Do not move the bar steel nor apply load within the determined hardening time.
PE type (Resin cartridge)
Size Capacity(ml) Content(Pc.) JAN Code
PE-600G 600 PE-600G Cartridge*1 Mixing nozzle*1 4989270930575

PE type exclusive parts
Product name Size Matching cartridge JAN Code Appearance
Mixing nozzle(2 Pcs.) RA-MX2PEGN PE-G 4989270930636
Injection gun 600 RA-GUN600 PE-600G 4989270930476
Installation specifications
Use bolt
different shape
reinforced steel		 Preparation
hole
diameter
(mm)		 Embedment
depth
(mm)		 Recommended
tightening
torque
(Nm)		 Required
resin
amount
(ml)		 Max.
extraction
strength
(KN)		 Number of
pieces
installed
(Pcs.)
M8 10.0 80 10 4 36.6 137
M10 12.0 90 20 6 56.9 91
D10 13.0 - 7 35.2 78
M12 14.0 110 40 9 82.2 61
D13 15.0 - 7 63.6 78
M16 18.0 130 80 15 145.6 36
D16 20.0 - 17 96.5 30
M20 24.0 170 120 42 191.8 13
D19 25.0 - 42 158.1 13
M22 25.0 190 140 43 238.7 12
D22 28.0 - 52 188.0 10
M24 28.0 210 160 66 245.6 8
D25 32.0 - 75 232.1 7
M30 35.0 280 200 135 - 4
D29 38.0 - 165 - 3
  • *FC=21N/mm2

■Related items

Push pump
Size Specifications JAN Code Appearance
RA-PUP (Nozzle diameter)
10mm
(Hose length)
270mm		 4989270930162
Metal brush
Size Specifications JAN Code Appearance
RA-MB10 Φ10*300 4989270930292
RA-MB13 Φ13*300 4989270930193
RA-MB18 Φ18*300 4989270930209
RA-MB28 Φ28*300 4989270930216
Extension nozzle(including three)
Size Specification JAN Code Appearance
RA-EXP3 Φ8×1m 4989270930445
