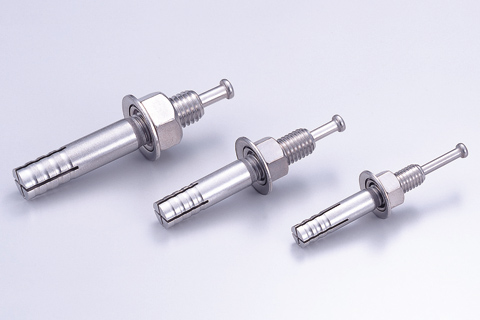

Rooty anchor SC Type

Nail-in anchor

JCAA

  • ■Simply hammer in the pin. Just by looking at the pin, completion of anchor can be confirmed.
  • ■Screw diameter and anchor unit diameter are the same, allowing use in small drill bores.
  • ■SC type is all stainless steel, making it highly corrosion resistant. Wide applications in high humidity locations.

Dimensional Drawing

Thread dia Tightening Torque
M6 5 N・m
M8 12 N・m
M10, W3/8 24 N・m
M12, W1/2 42 N・m
M16 100 N・m
M20 200 N・m
Rooty anchor SC Type

Uses

Concrete

Installation method

  1. Drill preparation hole.
  2. Position anchor.
  3. Strike pin with hammer.
  4. Anchor attached with open lags.

■Installation explanatory video

Rooty anchor SC Type Installation explanatory video

■Uses

Suited for all kinds of fixture attachments including construction, electrical, sanitation, airconditioning/heating, signboard attachment, seat attachment, and machine installation works.

■Structural Drawing

Structural Drawing

■Use Examples

Use Examples

Precautions on use

  • Protective clothing including safety glasses and helmets must always be worm when installing.
  • Drill perpendicularly into target surface.
  • Compared with anchor insertion depth, drill holes should be 5mm deeper for M6, M8, M10; 7mm deeper for M12; 10mm deeper for M16; 15mm deeper for M20.
  • Drilling preparation holes too shallow will break or bend core rods.
  • Use blower throughly.
  • Always set nut before hammering.
  • Use a hammer appropriate for the anchor size.

JCAA Product Certification Mark
Products with this certification mark satisfy the evaluation and certification standards specified
by the Japan Construction Anchor Association (JCAA).
SC type mm size (Stainless)FC=21N/mm2
Size Dia
(outside
diameter)
L
(mm)
TL
(mm)
Max. Use
Thickness

(mm)
Drilling condition
(mm)
Embedment
Depth

(mm)
Max.
extraction
strength

(kN)
Pcs./box Pcs./ctn JAN Code
Preparation
hole diameter
Penetration
hole depth
SC-645 M6 45 15 5 6.4 35 or more 30 or more 6.5 50 800 4989270710047
SC-660 60 20 20 50 800 4989270710054
SC-840 M8 40 15 5 8.5 30 or more 25 or more 9.8 50 800 4989270710061
SC-850* 50 20 5 40 or more 35 or more 10.3 50 800 4989270710085
SC-870* 70 25 25 50 400 4989270710092
SC-890* 90 25 45 50 400 4989270710108
SC-810 100 35 55 50 400 4989270710115
SC-1050 M10 50 20 5 10.5 35 or more 30 or more 10.1 50 400 4989270710122
SC-1060* 60 25 5 45 or more 40 or more 12.8 50 400 4989270710139
SC-1070 70 25 15 50 300 4989270710368
SC-1080* 80 25 25 50 300 4989270710146
SC-1090* 90 30 35 50 300 4989270710153
SC-1010* 100 30 45 50 300 4989270710160
SC-1012* 120 30 65 50 200 4989270710177
SC-1015 150 40 95 50 200 4989270710184
SC-1260 M12 60 25 8 12.7 42 or more 35 or more 17.0 30 240 4989270710191
SC-1270* 70 25 8 52 or more 45 or more 19.1 30 240 4989270710207
SC-1280 80 25 18 30 180 4989270710269
SC-1290* 90 30 28 30 180 4989270710214
SC-1210* 100 30 38 30 180 4989270710221
SC-1212* 120 50 58 30 120 4989270710238
SC-1215* 150 50 88 30 120 4989270710245
SC-1680 M16 80 30 8 17.0 60 or more 50 or more 31.5 15 90 4989270710252
SC-1610* 100 40 18 70 or more 60 or more 36.3 15 90 4989270710276
SC-1612* 120 40 38 15 90 4989270710283
SC-1615* 150 40 68 15 60 4989270710290
SC-1619* 190 50 108 15 60 4989270710306
SC-2013* M20 130 50 25 21.5 95 or more 80 or more 52.7 10 40 4989270710337
SC-2015* 150 50 45 10 40 4989270710344
SC-2019* 190 50 85 10 40 4989270710351
  • *JCAA certified product
  • *Special dimensions for both C and SC types can be produced to order.
SC type Inch size (stainless)FC=21N/mm2
Size Dia
(outside
diameter)
L
(mm)
TL
(mm)
Max. Use
Thickness

(mm)
Drilling condition
(mm)
Embedment
Depth

(mm)
Max.
extraction
strength

(kN)
Pcs./box Pcs./ctn JAN Code
Preparation
hole diameter
Penetration
hole depth
SC-3060* W3/8 60 25 5 10.0 45 or more 40 or more 14.0 50 400 4989270710436
SC-4870 W1/2
(12.0)
70 25 8 12.7 52 or more 45 or more 18.0 30 240 4989270710733
  • *JCAA certified product
  • *Special dimensions for both C and SC types can be produced to order.

*Maximum extraction strength values are values measured by UNIKA and not standard values.
