ANCHOR

NP plug NAS Type

Screw Type

  • ■Uses special nylon material eliminating corrosion worries.
  • ■Large range of available sizes matches wide range of wood screw sizes.
  • ■2-stage shape makes hammering in easy with reliable gripping.

Dimensional Drawing

NP plug NAS Type

Uses

Concrete•Block•ALC

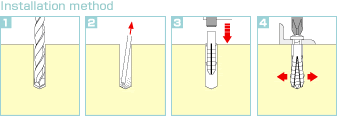

Installation method

  1. Drill preparation hole.
  2. Position plug.
  3. Srike in plug with hammer.
  4. Secure with wood screw.

■Uses

For attaching coping fixtures, sashes, waterproof sheeting, electrical equipment interior decorations, etc.

Precautions on use

  • Wear safety protection equipment such as eye protection glasses, a helmet etc. during use.
  • Be sure to use the drill of the appropriate size to secure proper strength for drilling the preparation hole.
  • Drill the preparation hole vertically against the drilled material surface.
  • Blow the hole thoroughly to remove shavings inside.
NAS typeFC=24N/mm2
Size Dia
(mm)
Length
(mm)
Screw used
(mm)
Drilling condition
(mm)
Embedment
depth

(mm)
Maximum
extraction strength

(kN)
Pcs./box Pcs./ctn JAN Code
Preparation
hole diameter
Penetration
hole depth
NAS-525 5 25 3.0-4.1 5.0 25 25 1.6 200 4,000 4989270821002
NAS-630 6 30 4.0-5.1 6.0 30 30 2.6 100 2,000 4989270821019
NAS-840 8 40 5.0-6.2 8.0 40 40 3.6 50 1,000 4989270821026
NAS-1050 10 50 7.0-8.0 10.0 50 50 5.5 25 500 4989270821033
NAS-1260 12 60 9.0-10.0 12.0 60 60 8.5 15 300 4989270821040
