Shaving Collection System QBit UX HEX Shank

Hammering+Rotation

  • ■With the aid of a high efficient vacuum collecting system with low drag, almost all of the generated dust and shavings can be vacuum extracted.
  • ■By the aid of newly designed holes and cross shaped tips, vacuum extraction has become more efficient.
  • ■Even if the drill hits a rebar, tools won't be stuck because of the cross shaped tips. Smooth drilling can be obtained by less tipend wear and it drills around the rebar.

designed holes and cross shaped tips

◆Applicable Electric Tool : Hammer Drill

mesure

Shaving Collection System QBit UX HEX Shank

Uses

CONCRETE / STONE / BLOCK / BRICK / MORTAR

unika news PDF(1,397KB)

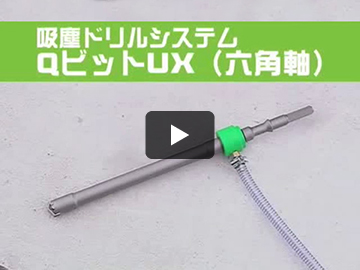

■Installation explanatory video

Shaving Collection System QBit UX HEX Shank

■New Q adapter mechanism (QHX/QMX type) for detaching

  • Removing the O-Ring has become very easy. Just insert a minus screw driver or similar shaped object into the groove prior to detaching the Q-Adapter.
New Q adapter mechanism (QHX/QMX type) for detaching

■Improvement in reinforced steel resistance performance

  • Stable drilling ability is maintained because cross blades seize less even when they contact reinforced steel and there is less friction between the cutting edge and outer diameter in comparison with the conventional product (one blade).
Improvement in reinforced steel resistance performance

■Dust collecting vacuum port and cross tip

  • The Q Bit can vacuum up concrete dust powerfully right after drilling in concrete and the cross design of the tips can make holes close to a perfectly round circle.
Dust collecting vacuum port and cross tip

■Shavings collection system

  • Right after drilling in concrete material by the Q-bit, the generated dust and shavings can be extracted through an entry port at the top of the Q-bit, collected via the hollow body of the drill bit and through an attached hose to the vacuum collector.
    The excellent collecting system of the Q-bit makes it possible to collect almost all of the dust and shavings at the top by using this collecting devise.
    Operators can be freed from a poor working environment or be covered with dust when working on a ceiling overhead.
Shavings collection system
QHX TYPE (HEX Shank)
Part No. Diameter (mm) Overall length
(mm)
Effective length (mm) JAN Code
QHX12.5X320 12.5 320 130 4989270075405
QHX12.7X320 12.7 4989270075412
QHX13.0X320 13.0 4989270075788
QHX14.0X320 14.0 4989270075795
QHX14.5X320 14.5 4989270075429
QHX15.0X320 15.0 4989270075801
QHX16.0X320 16.0 4989270075436
QHX17.0X320 17.0 4989270075849
QHX18.0X340 18.0 340 160 4989270075450
QHX19.0X340 19.0 4989270075467
QHX20.0X340 20.0 4989270075474
QHX21.5X400 21.5 400 210 4989270075481
QHX22.0X400 22.0 4989270075498
QHX22.5X400 22.5 4989270075856
QHX24.0X400 24.0 4989270075504
QHX25.0X400 25.0 4989270075511
QHX26.0X400 26.0 4989270075528
QHX28.0X440 28.0 440 250 4989270075535
QHX30.0X440 30.0 4989270075542
QHX32.0X490 32.0 490 300 4989270075559
QHX34.0X490 34.0 4989270075566
QHX TYPE LONG (HEX Shank)
Part No. Diameter (mm) Overall length
(mm)
Effective length (mm) JAN Code
QHX16.0X400 16.0 400 210 4989270075573
QHX20.0X440 20.0 440 250 4989270075580
QHX24.0X490 24.0 490 300 4989270075597
QHX25.0X440 25.0 440 250 4989270075603
QHX25.0X490 490 300 4989270075610

Precautions on use

  • This product is only for the dry type. This product cannot be used in water or in highly damp places.
  • Activate the shaving collector before performing hole drilling.
Q adaptor set (For HEX/SDS-max shank)
Part No. Set Contents JAN Code
Q-ADP-L1 Q adaptor (For HEX / SDS-max)
Backup ring / O ring (2 pcs)
Hose holder / Hose fastening plate
4989270074156
Q adaptor (For HEX / SDS-max)
Socket for Shavings Collector
Part No. Available manufacturers JAN Code
QSKT-H HiKOKI 4989270074057
QSKT-M MAKITA 4989270074064
QSKT-F free size (for other manufactuers) 4989270074071
Hose of UNIKA make (Outer diameter16mm)
Part No. Hose length (m) JAN Code
QHOS-3M 3 4989270074101
QHOS-5M 5 4989270074118
QHOS-10M 10 4989270074125
Hose Holder
Part No. Application JAN Code
Q-HLD Holder which prevents rotation of the hose 4989270074088
