The C&G Series is UNIKA’s newest product series proposal designed with the objective of realizing an ideal work site environment for the future from the standpoint of a manufacturer of advanced tools, particularly by developing products that provide a “clean and comfortable environment for workers and the people around them.”

■It is thought that shavings are inevitable to drilling work, but our new type "Q Bit" has put an end to such a concept. This Q Bit draws in concrete shavings very powerfully while drilling. It ensures the user a comfortable and clean working environment, free from shavings from drilling.
■The efficient Shaving Collection System with no friction loss allows most of the shavings produced to be drawn in.
■Operating efficiency greatly improved by simplified cleaning in the holes for anchor bolt installations.
Prevents deterioration of anchor adhesiveness and coming out due to the omission of cleaning inside holes.

*This product is only for the dry type. This product cannot be used in water or in highly damp places.

*Activate the shaving collector before performing hole drilling.

（1,397KB）

Uses

Steel Deck Plate+Concrete•Block•Brick•Mortar

■Installation explanatory video

Smart phone and a tablet is here.

■Shavings collection system outline

With the rapidly increased demand for post-installed anchor bolt installations, improvement in operating efficiency is realized by simplifying processes to clean shavings in holes (blowing - brushing - blowing). In addition, the system prevents the deterioration of anchor adhesiveness due to the omission of cleaning inside holes.

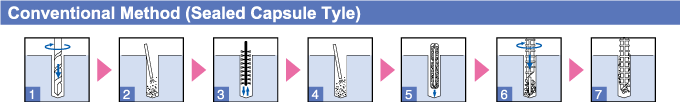

Conventional Method (Sealed Capsule Tyle)

Drill preparation hole.
Blow the hole to clear shavings.
Brush the hole to dislodge shaving. *Brush the shavings off
Blow the hole a second time.
Position Anchor.
Insert the anchor using an electric hammer drill.
Solidify resin completely.

Drill preparation hole.
Position Anchor.
Hammer in. Anchor will rotate into position.
Resin solidifies within a certain period of time.

*Our adhesive HC type anchor (Hammered-in type) allow an even easier installation process. The rod being inserted need not be slashed at the tip.
Also, only a regular hammer need by used, not an electric hammer drill. For the details, please contact Unika.

The Q Bit serves an active role in every working field where shavings cannot be tolerated.

■Shavings Collecting Mechanism

The Shavings Collecting System allows you not only to drill holes into concrete materials, but to extract the shavings produced during the drilling directly into the intake hole on the top of the Q bit drill. The shavings will go through inside of the hollow bit and the hose. Thanks to this efficient system, it has become possible to almost completely draw in all the shavings produced during the drilling making a clean working environment.
