Shaving Collection System QBit UX SDS Shank

Hammering+Rotation

  • ■With the aid of a high efficient vacuum collecting system with low drag, almost all of the generated dust and shavings can be vacuum extracted.
  • ■By the aid of newly designed holes and cross shaped tips, vacuum extraction has become more efficient.
  • ■Adopting the new Q adapter with a spring enables it to be detached easily.

designed holes and cross shaped tips

◆Applicable Electric Tool : Rotary Hammer Drill (SDS-plus)

mesure

Shaving Collection System QBit UX SDS Shank

Uses

STEEL DECK PLATE + CONCRETE / BLOCK / BRICK / MORTAR

unika news PDF(1,397KB)

■Installation explanatory video

Shaving Collection System QBit UX SDS Shank

■New Q adapter mechanism (QSX type) for detaching

  • Adopting a new Q adapter with a spring enables an O ring to be detached easily when necessary.
New Q adapter mechanism (QSX type) for detaching

■Dust collecting vacuum port and cross tip

  • The Q Bit can vacuum up concrete dust powerfully right after drilling in concrete and the cross design of the tips can make holes close to a perfectly round circle.
Dust collecting vacuum port and cross tip

■Improvement in reinforced steel resistance performance

  • Stable drilling ability is maintained because cross blades seize less even when they contact reinforced steel and there is less friction between the cutting edge and outer diameter in comparison with the conventional product (one blade).
Improvement in reinforced steel resistance performance

■Shavings collection system

  • Right after drilling in concrete material by the Q-bit, the generated dust and shavings can be extracted through an entry port at the top of the Q-bit, collected via the hollow body of the drill bit and through an attached hose to the vacuum collector.
    The excellent collecting system of the Q-bit makes it possible to collect almost all of the dust and shavings at the top by using this collecting devise.
    Operators can be freed from a poor working environment or be covered with dust when working on a ceiling overhead.
Shavings collection system
QSX TYPE(SDS Shank)
Part No. Diameter (mm) Overall length
(mm)
Effective length (mm) JAN Code
QSXA10.0X260 10.0 260 140 4989270076013
QSXA10.5X260 10.5 4989270076020
QSXA12.0X260 12.0 4989270076037
QSXA12.5X260 12.5 4989270076044
QSXA12.7X260 12.7 4989270076051
QSXA13.0X260 13.0 4989270076068
QSXA14.0X260 14.0 4989270076075
QSXA14.3X260 14.3 4989270076082
QSXA14.5X260 14.5 4989270076099
QSXA15.0X260 15.0 4989270076105
QSXA16.0X260 16.0 4989270076112
QSXA16.5X260 16.5 4989270076129
QSXA17.0X260 17.0 4989270076136
QSXA17.5X260 17.5 4989270076143
QSXA18.0X280 18.0 280 160 4989270076150
QSXA19.0X280 19.0 4989270076167
QSXA20.0X280 20.0 4989270076174
QSXA21.5X330 21.5 330 210 4989270076181
QSXA22.0X330 22.0 4989270076198
QSXA22.5X330 22.5 4989270076204

Precautions on use

  • This product is only for the dry type. This product cannot be used in water or in highly damp places.
  • Activate the shaving collector before performing hole drilling.

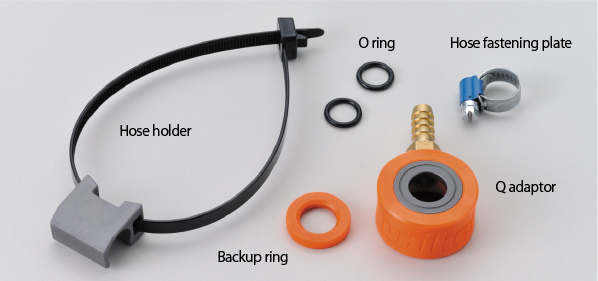

Q adaptor set (For SDS shank)
Part No. Set Contents JAN Code
Q-ADP-S Q adaptor (For SDS)
Backup ring / O ring (2 pcs)
Hose holder / Hose fastening plate
4989270074149
Qアダプターセット(SDSシャンク用)
Socket for Shavings Collector
Part No. Available manufacturers JAN Code
QSKT-H HiKOKI 4989270074057
QSKT-M MAKITA 4989270074064
QSKT-F free size (for other manufactuers) 4989270074071
Hose of UNIKA make (Outer diameter16mm)
Part No. Hose length (m) JAN Code
QHOS-3M 3 4989270074101
QHOS-5M 5 4989270074118
QHOS-10M 10 4989270074125
Hose Holder
Part No. Application JAN Code
Q-HLD Holder which prevents rotation of the hose 4989270074088
