HOLE SAW

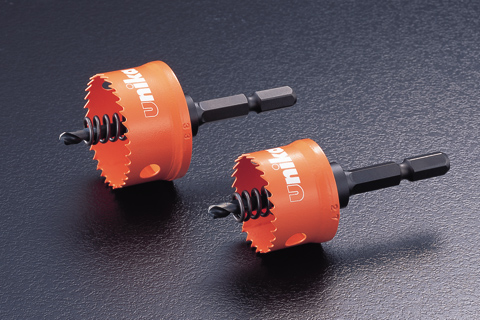

H.S.S Cordless High-speed-steel hole saw

Rotation+Impact

  • ■Blade part utilizing high grade steel (SKH-51), providing a sharp cutting edge.
  • ■Blade thickness only 0.5mm. Thoroughly reducing cutting resistance to a minimum, reducing waste of electrical consumption, improving the number of holes drilled on one full charge.

◆Effective length: 12mm

◆Matching drill: Cordless drill/Driver drill/Electric drill(under 400W)

◇with standard ejector spring provided on all sizes.

unika news PDF (780KB)

Dimensional Drawing

HSSH.S.S Cordless High-speed-steel hole saw

Uses

Sheet metal (2mm or less)• Aluminum (2mm or less)• PVC• Plywood• FRP• Plastic

■Compatible Motors

  • ■Rechargeable drills of a rotation speed of approximately 1,000 rpm and rotary torque of 50 N-m (approx. 50 kgf-cm) specifications (for rotation use only).
  • ■Compact electric drills with electric power consumption of 400 W or less.

*Cannot be used with impact wrenches, drilling machines, percussion drills, or hammer drills.

*Use with a rechargeable drill at 9.6V or more.

  • <Gauge> 12-30mm (50*30*116)

    <Gauge>
    12-30mm
    (50*30*116)

  • <Gauge> 31-38mm (62*43*116)

    <Gauge>
    31-38mm
    (62*43*116)

*Numerical values in ( ) indicate the package size.
W × D × H (mm). The size dimensions have an error of approximately 2mm depending on the package.

Precautions on use

  • Use electrical drills appropriate for the hole saw used.
  • Be sure to turn off the main switch of the drill and disconnect the power supply plug from the socket before attaching and detaching the hole saw.
  • Do not touch the hole saw, the shavings, or the drilled surface by hand because they may be hot by drilling friction.
  • Wear working clothes suitable for operation, including eye protection equipment to prevent shavings from getting into eyes.
  • Prepare working environment before starting jobs.
  • Read carefully the instruction manual for the electrical drill used before use.
HSS Cordless High-speed-steel hole saw (HSSJ type)
Size Diameter(mm) Effective Length(mm) Shank Dia(mm) Pcs./box JAN Code
HSSJ-12 12 12 6.35 5 4989270580053
HSSJ-13 13 4989270580060
HSSJ-14 14 4989270580077
HSSJ-15 15 4989270580084
HSSJ-16 16 4989270580091
HSSJ-17 17 4989270580107
HSSJ-18 18 4989270580114
HSSJ-19 19 4989270580121
HSSJ-20 20 12 6.35 5 4989270580138
HSSJ-21 21 4989270580145
HSSJ-22 22 4989270580152
HSSJ-23 23 4989270580169
HSSJ-24 24 4989270580176
HSSJ-25 25 4989270580183
HSSJ-26 26 4989270580190
HSSJ-27 27 4989270580206
HSSJ-28 28 4989270580213
HSSJ-29 29 4989270580220
HSSJ-30 30 4989270580237
HSSJ-31 31 12 6.35 3 4989270580244
HSSJ-32 32 4989270580251
HSSJ-33 33 4989270580268
HSSJ-34 34 4989270580275
HSSJ-35 35 4989270580282
HSSJ-36 36 4989270580299
HSSJ-37 37 4989270580305
HSSJ-38 38 4989270580312
Center Drill
Size Diameter(mm) Overall Length(mm) Hole Saw Size(mm) JAN Code
S-4L 4 41 12-38 4989270580022
Ejector Spring
Size Hole Saw Size(mm) JAN Code
HSSJ KS-No.3 12-14 4989270580039
HSSJ KS-No.4 15-38 4989270580046

*When work material has a plate thickness of 2 mm or more or is pipe material, remove the spring before use.

TOOL BOX SET

There is also the tool box set which is convenient to carrying and receiving.

[For Electrical Repair]
  • 21/27mm*each 2 33mm*each 1 [TB-29]
  • 22/28mm*each 2 35mm*each 1 [TB-30]
[For Equipment Installation]
  • 25/28/30/32/35mm*each 1 [TB-31]
HSS Cordless High-speed-steel hole saw (Tool Box Set)
Size Set Dia(mm) JAN Code
TB-29 21 21 27 27 33 4989270581012
TB-30 22 22 28 28 35 4989270581029
TB-31 25 28 30 32 35 4989270581036
