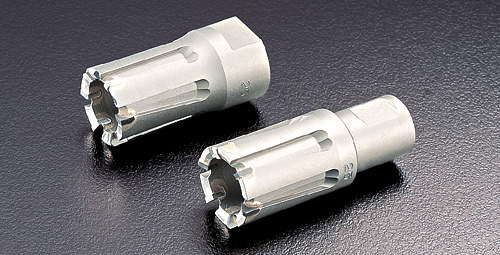

- ■High-precision speed drilling through thick steel plate. Overlap drilling also possible.
- ■Include unique Unika technology such as 3-angle cutting edges. Low chance of premature tip damage for stable cutter life.
- ■A M18, screw-in type shank.
◆Effective Length: 50mm
◆Applicable Electric Tool: Magnetic Drilling Machine
（628KB）
Uses
STEEL PLATE (HB300 or less)? CAST IRON? STAINLESS STEEL? PIPE MATERIAL
■Compatible Magnetic Drilling Machine (M18 Type)
| Standerd size | Manufacturer | Model No. | Thickness | MX50H | Remarks |
|---|---|---|---|---|---|
| HiKOKI | BM 25M | up to 35mm | - | M18 (M18x6P 1.5) |
|
| BM 40M(S) | up to 35mm | - | |||
| BM 60M | up to 50mm | up to Φ50.0 | Standerd size | HiKOKI | BM 25Y | up to 35mm | - |
| BM 35Y | up to 50mm | up to Φ35.0 | |||
| BM 40Y | up to 35mm | - | |||
| BM 60Y | up to 50mm | up to Φ50.0 |
■Attachment Method (M18 Type)
* Make sure that the startup switch of the drill is turned off and disconnect the power supply plug from the socket before attaching and detaching the hole saw.
- Insert the Meta-Core MAX-H into the center pin.
- Align it with the screw and tighten it.
| Code | Diameter(mm) | Overall Length(mm) | Screw diameter(mm) | JAN Code |
|---|---|---|---|---|
| MX50H-18.0 | 18.0 | 80 | M18 (6P 1.5) | 4989270480254 |
| MX50H-19.0 | 19.0 | 4989270480261 | ||
| MX50H-20.0 | 20.0 | 4989270480278 | ||
| MX50H-21.0 | 21.0 | 4989270480285 | ||
| MX50H-21.5 | 21.5 | 4989270480292 | ||
| MX50H-22.0 | 22.0 | 4989270480308 | ||
| MX50H-23.0 | 23.0 | 4989270480322 | ||
| MX50H-23.5 | 23.5 | 4989270480339 | ||
| MX50H-24.0 | 24.0 | 4989270480346 | ||
| MX50H-24.5 | 24.5 | 4989270480353 | ||
| MX50H-25.0 | 25.0 | 4989270480360 | ||
| MX50H-25.5 | 25.5 | 80 | M18 | 4989270480377 |
| MX50H-26.0 | 26.0 | 4989270480384 | ||
| MX50H-26.5 | 26.5 | 4989270480391 | ||
| MX50H-27.0 | 27.0 | 4989270480407 | ||
| MX50H-28.0 | 28.0 | 4989270480421 | ||
| MX50H-29.0 | 29.0 | 4989270480438 | ||
| MX50H-30.0 | 30.0 | 4989270480445 | ||
| MX50H-31.0 | 31.0 | 4989270480452 | ||
| MX50H-32.0 | 32.0 | 4989270480469 | ||
| MX50H-33.0 | 33.0 | 4989270480476 | ||
| MX50H-34.0 | 34.0 | 4989270480483 | ||
| MX50H-35.0 | 35.0 | 4989270480490 | ||
| MX50H-36.0 | 36.0 | 80 | M18 | 4989270480506 |
| MX50H-37.0 | 37.0 | 4989270480513 | ||
| MX50H-38.0 | 38.0 | 4989270480520 | ||
| MX50H-39.0 | 39.0 | 4989270480537 | ||
| MX50H-40.0 | 40.0 | 4989270480544 | ||
| MX50H-41.0 | 41.0 | 4989270480551 | ||
| MX50H-42.0 | 42.0 | 4989270480568 | ||
| MX50H-43.0 | 43.0 | 4989270480575 | ||
| MX50H-44.0 | 44.0 | 4989270480582 | ||
| MX50H-45.0 | 45.0 | 4989270480599 | ||
| MX50H-46.0 | 46.0 | 4989270480605 | ||
| MX50H-47.0 | 47.0 | 4989270480612 | ||
| MX50H-48.0 | 48.0 | 4989270480629 | ||
| MX50H-49.0 | 49.0 | 4989270480636 | ||
| MX50H-50.0 | 50.0 | 4989270480643 |
META-CORE MAX 25 RAIL
- ■The flute design which took scrap discharge into consideration on only rail drilling.
- ■A set of three original edges which enable drilling stability and long life.
◆Effective Length: 25 mm (MAX25 RAIL)
◆Applicable Electric Tool: Rail Drilling Machine
* Since it is a speial production article, please ask for conditions etc.
Side lock conversion adapterWith an exclusive center pin
- * Cutters with this four thread shank design are usually magnet drill presses like HiKOKI machines. But, with this adaptor, the Unika Metacore MAX (one touch type), could also be used on these type of magnetic drill presses.
- * Please be sure to use the correct pilot center pin (MX25/35 are the same).
| Code | Hole Saw Size(mm) | JAN Code |
|---|---|---|
| MCH-ADP | MX25 11.5~13.5 | 4989270483095 |
| MX35 14.0~40.0 |
