- For Compound Material
- Compound Material: Short

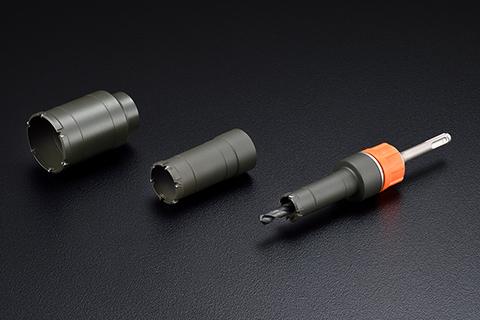

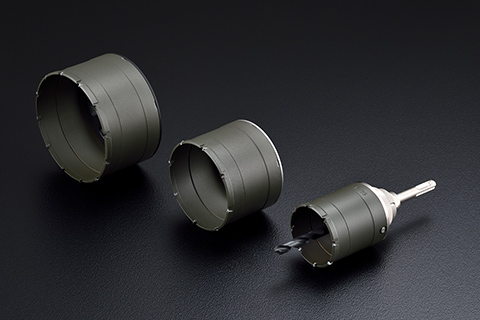

- ■Employing the unique double blade feature, with the inner-blade preceding the outer-blade, therefore boring through material such as; Metallic siding, stainless/wood siding as well as Compound material (metallic siding + insulating material + plywood) at one go is possible.
- ■Possible to bore through several layers of thin steel plates.
- ■Short type with an effective length of 60 mm.
◆Matching drill: Electric drill/Percussion drill(rotating mode)
Uses
Thin Steel Plates•Aluminium•Metallic Siding Board•2×4's including nails•Timber•Plywood•PVC panel•FRP•Plasterboard•Stainless Steel
| Code | Diameter (mm) |
Effective Length (mm) |
Center Drill (code) |
JAN Code | |||
|---|---|---|---|---|---|---|---|
| ST-Shank | SDS-Shank | ST | SDS | ||||
| UR21-FS025ST | UR21-FS025SD | 25 | 60 | URCD-H140 | 4989270259010 | 4989270259515 | |
| UR21-FS029ST | UR21-FS029SD | 29 | 4989270259027 | 4989270259522 | |||
| UR21-FS032ST | UR21-FS032SD | 32 | 4989270259034 | 4989270259539 | |||
| UR21-FS035ST | UR21-FS035SD | 35 | 4989270259041 | 4989270259546 | |||
| UR21-FS038ST | UR21-FS038SD | 38 | 4989270259058 | 4989270259553 | |||
| UR21-FS040ST | UR21-FS040SD | 40 | 4989270259065 | 4989270259560 | |||
| UR21-FS045ST | UR21-FS045SD | 45 | 4989270259072 | 4989270259577 | |||
| UR21-FS050ST | UR21-FS050SD | 50 | 4989270259089 | 4989270259584 | |||
| UR21-FS055ST | UR21-FS055SD | 55 | 4989270259096 | 4989270259591 | |||
| UR21-FS060ST | UR21-FS060SD | 60 | 60 | 2CB-150 | 4989270259102 | 4989270259607 | |
| UR21-FS065ST | UR21-FS065SD | 65 | 4989270259119 | 4989270259614 | |||
| UR21-FS070ST | UR21-FS070SD | 70 | 4989270259126 | 4989270259621 | |||
| UR21-FS075ST | UR21-FS075SD | 75 | 4989270259133 | 4989270259638 | |||
| UR21-FS080ST | UR21-FS080SD | 80 | 4989270259140 | 4989270259645 | |||
| UR21-FS090ST | UR21-FS090SD | 90 | 4989270259164 | 4989270259669 | |||
| UR21-FS095ST | UR21-FS095SD | 95 | 4989270259171 | 4989270259676 | |||
| UR21-FS100ST | UR21-FS100SD | 100 | 4989270259188 | 4989270259683 | |||
| UR21-FS105ST | UR21-FS105SD | 105 | 4989270259195 | 4989270259690 | |||
| UR21-FS110ST | UR21-FS110SD | 110 | 4989270259201 | 4989270259706 | |||
| UR21-FS120ST | UR21-FS120SD | 120 | 4989270259225 | 4989270259720 | |||
| UR21-FS130ST | UR21-FS130SD | 130 | 4989270259249 | 4989270259737 | |||
| UR21-FS150ST | UR21-FS150SD | 150 | 4989270259256 | 4989270259744 | |||
| UR21-FS155ST | UR21-FS155SD | 155 | 4989270259263 | 4989270259751 | |||
| UR21-FS160ST | UR21-FS160SD | 160 | 4989270259270 | 4989270259768 | |||
| UR21-FS170ST | UR21-FS170SD | 170 | 4989270259287 | 4989270259775 | |||

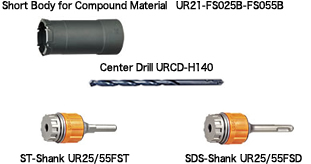

All replacement blades and all sizes (diameter: 25 - 55 mm) are available for one type shank assembly.

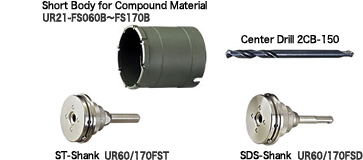

All replacement blades and all sizes (diameter: 60 - 170 mm) are available for one type shank assembly.
| Code | Diameter (mm) |
JAN Code | |
|---|---|---|---|
| UR21-FS025B | 25 | 4989270299016 | |
| UR21-FS029B | 29 | 4989270299023 | |
| UR21-FS032B | 32 | 4989270299030 | |
| UR21-FS035B | 35 | 4989270299047 | |
| UR21-FS038B | 38 | 4989270299054 | |
| UR21-FS040B | 40 | 4989270299061 | |
| UR21-FS045B | 45 | 4989270299078 | |
| UR21-FS050B | 50 | 4989270299085 | |
| UR21-FS055B | 55 | 4989270299092 | |
| UR21-FS060B | 60 | 4989270299108 | |
| UR21-FS065B | 65 | 4989270299115 | |
| UR21-FS070B | 70 | 4989270299122 | |
| UR21-FS075B | 75 | 4989270299139 | |
| UR21-FS080B | 80 | 4989270299146 | |
| UR21-FS090B | 90 | 4989270299160 | |
| UR21-FS095B | 95 | 4989270299177 | |
| UR21-FS100B | 100 | 4989270299184 | |
| UR21-FS105B | 105 | 4989270299191 | |
| UR21-FS110B | 110 | 4989270299207 | |
| UR21-FS120B | 120 | 4989270299221 | |
| UR21-FS130B | 130 | 4989270299238 | |
| UR21-FS150B | 150 | 4989270299245 | |
| UR21-FS155B | 155 | 4989270299252 | |
| UR21-FS160B | 160 | 4989270299269 | |
| UR21-FS170B | 170 | 4989270299276 | |
| Code | Diameter (mm) |
Overall Length (mm) |
Core Drill Size (mm) |
JAN Code |
|---|---|---|---|---|
| URCD-H140 | 9.5 | 150 | 25-55 | 4989270225022 |
| 2CB-150 | 150 | 60-170 | 4989270220546 |
| Code | Core Drill Size (mm) |
JAN Code | |||
|---|---|---|---|---|---|
| ST-Shank | SDS-Shank | ST | SDS | ||
| UR25/55FST | UR25/55FSD | 25-55 | 4989270225312 | 4989270225510 | |
| UR60/170FST | UR60/170FSD | 60-170 | 4989270225329 | 4989270225336 | |
